Item # AOP L513YD
LED 5MM YELLOW DIFFUSED
Unit Price: $0.11000 / EA
- Guest In Stock
- Minimum Order Qty: 1
- Pkg Qty: 500
- Case Qty: 500
- Log in to see if custom discounts apply
Quantity Price Break
| UM | Qty | Price | Ext. Price |
|---|---|---|---|
| EA | 1 | $0.11000 | $0.11 |
| EA | 25 | $0.10300 | $2.58 |
| EA | 50 | $0.09800 | $4.90 |
| EA | 100 | $0.08700 | $8.70 |
| EA | 250 | $0.07800 | $19.50 |
| EA | 500 | $0.05500 | $27.50 |
| EA | 1,000 | $0.04400 | $44.00 |

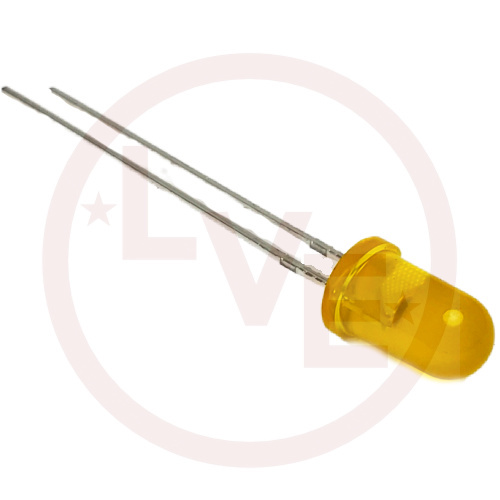

Click image to enlarge
AOP L513YD
LED 5MM YELLOW DIFFUSED
- UM: EA
- Brand: AMERICAN OPTO PLUS
Specifications
| Manufacturer | American Opto Plus |
| Color | Yellow |
| Voltage Rating | 1.9V |
| Current | 10mA |
| Lens Color | Yellow Diffused |
| Lens Transparency | Clear |
| Lens Style | Round w/Dome Top |
| Lens Size | 5mm |
| Height | 9.6mm |
| Millicandela Rating | 20mcd |
| Viewing Angle | 60 DEG |
| Wavelength Peak | 589nm |
| Mounting Type | Through Hole |
| Part Status | Active |
