Item # AMP 770843-1
CONNECTOR 4 POS RECEPTACLE HSG COMMERCIAL .62" PIN & SOCKET NATURAL W/DETENT LOCK
Unit Price: $0.27100 / EA
- Minimum Order Quantity: 1
- Package Quantity: 1
- Case Quantity: 1,500
- Log in to see if custom discounts apply
Quantity Price Break
| UM | Qty | Price | Ext. Price |
|---|---|---|---|
| EA | 1 | $0.27100 | $0.27 |

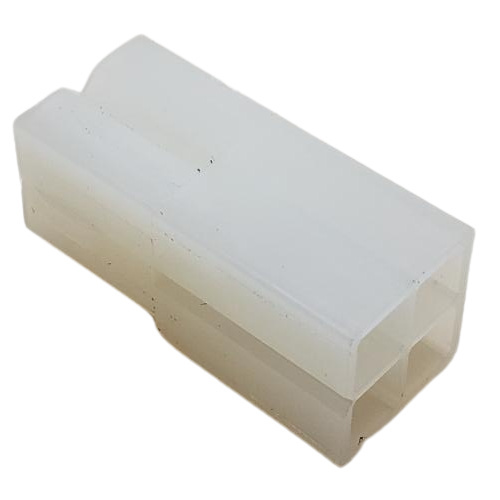

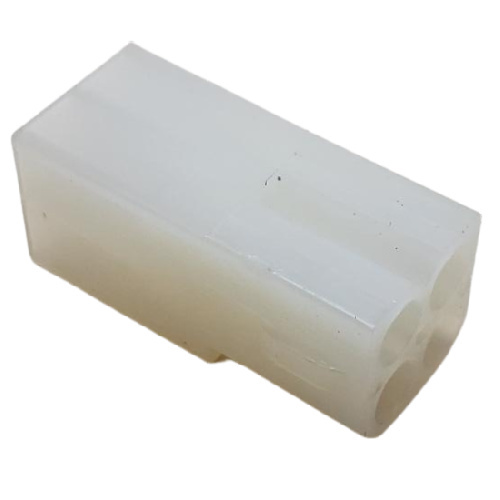

Click image to enlarge
AMP 770843-1
CONNECTOR 4 POS RECEPTACLE HSG COMMERCIAL .62" PIN & SOCKET NATURAL W/DETENT LOCK
- UM: EA
- Weight: 0.01 LBS
- Brand: TE CONNECTIVITY
Specifications
| Manufacturer | TE Connectivity (Amp) |
| Connector Type | Receptacle |
| Number of Positions | 4 |
| Number of Rows | 2 |
| Contact Type | Male or Female |
| Pitch | .198" (5.03mm) |
| Row Spacing | .198" (5.03mm) |
| Contact Termination | Crimp |
| Mounting Type | Free Hanging (In-Line) |
| Color | Natural |
| Part Status | Active |
