Item # AZMEX 38330-0502
CONNECTOR RECEPTACLE 2 POS FEMALE BLADE SOCKET PANEL MNT W/ANGLE BRKT
Unit Price: $8.10000 / EA
- On Order Quantity: 1,326
- Arrival Date: 05/22/2025
- Minimum Order Quantity: 1
- Package Quantity: 68
- Case Quantity: 1,326
- Log in to see if custom discounts apply
Quantity Price Break
| UM | Qty | Price | Ext. Price |
|---|---|---|---|
| EA | 1 | $8.10000 | $8.10 |
| EA | 25 | $7.69000 | $192.25 |
| EA | 50 | $7.31000 | $365.50 |
| EA | 100 | $6.94000 | $694.00 |
| EA | 250 | $6.59000 | $1647.50 |
| EA | 500 | $6.26000 | $3130.00 |
| EA | 1,000 | $5.95000 | $5950.00 |
Click image to enlarge

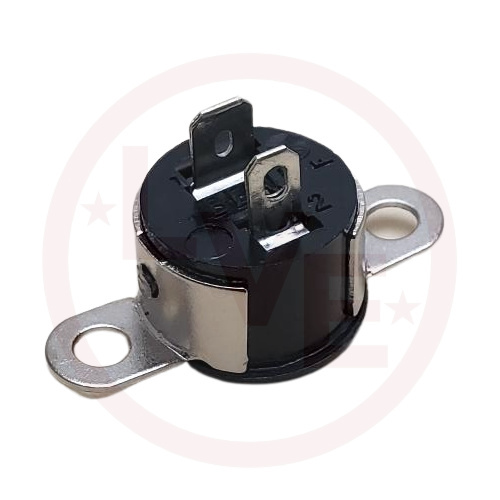

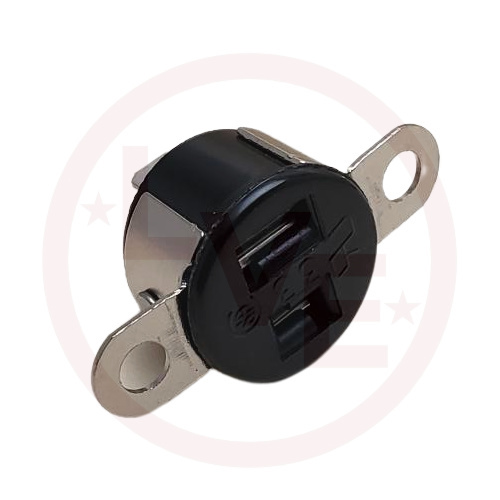

AZMEX 38330-0502
CONNECTOR RECEPTACLE 2 POS FEMALE BLADE SOCKET PANEL MNT W/ANGLE BRKT
- UM: EA
- Weight: 0.11 LBS
DIRECT SUB FOR MOLEX #38330-0502, BEAU #S-3302-AB
Specifications
| Manufacturer | AZMEX |
| Connector Type | Receptacle, Female Blade Socket |
| Number of Positions | 2 |
| Number of Rows | 1 |
| Connector Style | - |
| Pitch | - |
| Termination | Solder Eyelet(s) |
| Fastening Type | Push-Pull |
| Mounting Type | Panel Mount |
| Voltage Rating | 250V |
| Current Rating (Amps) | 10A |
| Color | Black |
| Features | Flange |
| Part Status | Active |
