Item # AZMEX 383318406
CONNECTOR SOCKET 6 POS FEMALE 10A CABLE CLAMP TOP W/KEEPER
Unit Price: $6.49000 / EA
- Minimum Order Quantity: 1
- Package Quantity: 100
- Case Quantity: 100
- Log in to see if custom discounts apply
Quantity Price Break
| UM | Qty | Price | Ext. Price |
|---|---|---|---|
| EA | 1 | $6.49000 | $6.49 |
| EA | 5 | $6.15000 | $30.75 |
| EA | 10 | $5.82000 | $58.20 |
| EA | 25 | $5.53000 | $138.25 |
| EA | 50 | $5.25000 | $262.50 |
| EA | 100 | $4.98000 | $498.00 |
Click image to enlarge

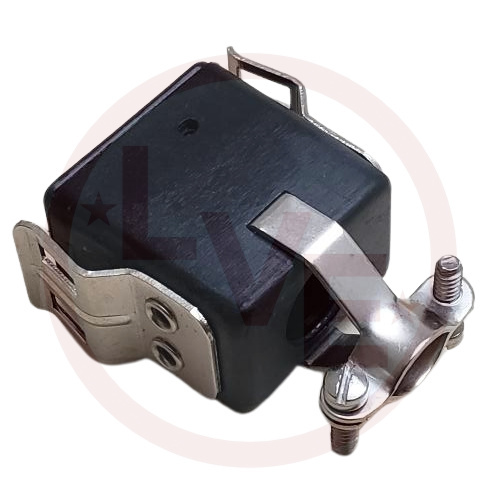

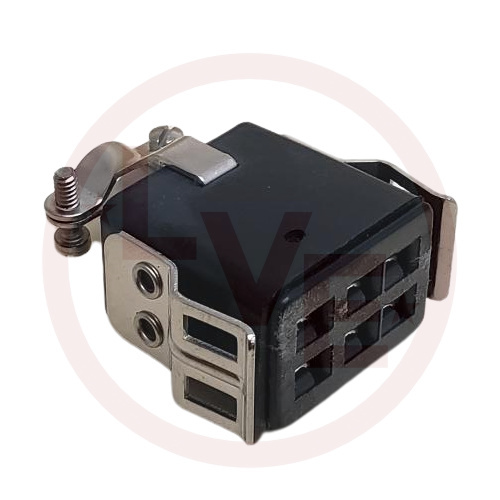

AZMEX 383318406
CONNECTOR SOCKET 6 POS FEMALE 10A CABLE CLAMP TOP W/KEEPER
- UM: EA
- Weight: 0.04 LBS
DIRECT SUB FOR MOLEX #38331-8406, BEAU #S-3306-CCT-K
Specifications
| Manufacturer | AZMEX |
| Connector Type | Receptacle, Female Blade Socket |
| Number of Positions | 6 |
| Number of Rows | 2 |
| Connector Style | - |
| Pitch | - |
| Termination | Solder Eyelet(s) |
| Fastening Type | Push-Pull |
| Mounting Type | Free Hanging (In-Line) |
| Voltage Rating | 250V |
| Current Rating (Amps) | 10A |
| Color | Black |
| Features | Cable Clamp |
| Part Status | Active |
