Item # AZMEX P-3321-DB
CONNECTOR PLUG 15 POS MALE PNL MNT
Submit Quote for Price
- Quantity Available: 45
- Minimum Order Qty: 1
- Pkg Qty: 5
- Case Qty: 5
- Log in to see if custom discounts apply
Click image to enlarge

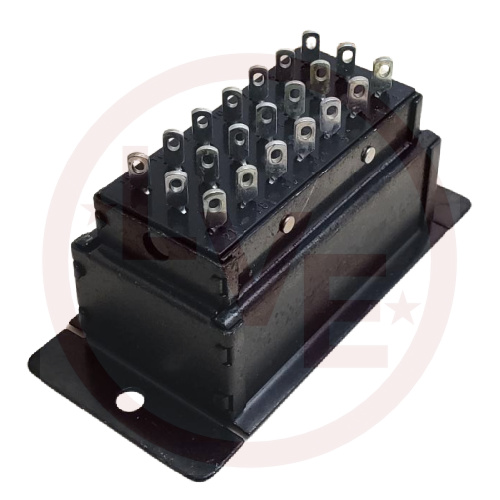

AZMEX P-3321-DB
CONNECTOR PLUG 15 POS MALE PNL MNT
- UM: EA
- Weight: 0.19 LBS
DIRECT SUB FOR MOLEX #38330-5721, BEAU #P-3321-DB
Specifications
| Manufacturer | AZMEX |
| Connector Type | Plug, Male Blades |
| Number of Positions | 15 |
| Number of Rows | 3 |
| Connector Style | - |
| Pitch | - |
| Termination | Solder Eyelet(s) |
| Fastening Type | Push-Pull |
| Mounting Type | Panel Mount |
| Voltage Rating | 250V |
| Current Rating (Amps) | 10A |
| Color | Black |
| Features | Flange |
| Part Status | Active |
