Item # CIT A2F1CSQ12VDC1.9RT
RELAY 12VDC 40A SPDT SEALED W/RESISTOR 5-TERM Q.C.
Unit Price: $3.05000 / EA
- Minimum Order Quantity: 1
- Package Quantity: 20
- Case Quantity: 100
- Log in to see if custom discounts apply
Quantity Price Break
| UM | Qty | Price | Ext. Price |
|---|---|---|---|
| EA | 1 | $3.05000 | $3.05 |
| EA | 5 | $2.89000 | $14.45 |
| EA | 10 | $2.75000 | $27.50 |
| EA | 25 | $2.61000 | $65.25 |
| EA | 50 | $2.48000 | $124.00 |
| EA | 100 | $2.35000 | $235.00 |
| EA | 250 | $2.23000 | $557.50 |

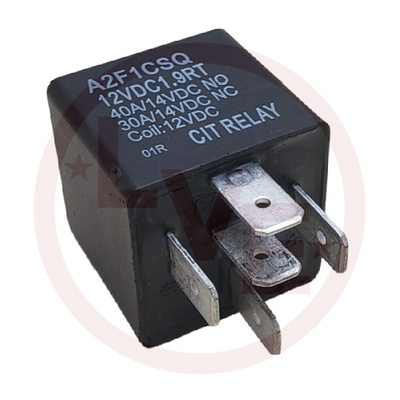

Click image to enlarge
CIT A2F1CSQ12VDC1.9RT
RELAY 12VDC 40A SPDT SEALED W/RESISTOR 5-TERM Q.C.
- UM: EA
- Weight: 0.07 LBS
- Brand: PICKER COMPONENTS
1.9WATT 680 OHM RESISTOR MNT FLG
Specifications
| Manufacturer | CIT Relay and Switch |
| Coil Voltage | 12VDC |
| Contact Form | SPDT (1FormC) |
| Contact Rating (Amps) | 40A |
| Number of Terminals | 5 |
| Connection Type | Plug In |
| Case Style | Sealed |
