Item # DEUTSCH DT13-12PA
CONNECTOR HEADER 12 POS R/A RECEPTACLE
Unit Price: $11.69000 / EA
- Quantity Available: 83
- Minimum Order Qty: 1
- Pkg Qty: 1
- Case Qty: 125
- Log in to see if custom discounts apply
Quantity Price Break
| UM | Qty | Price | Ext. Price |
|---|---|---|---|
| EA | 1 | $11.69000 | $11.69 |
| EA | 10 | $9.55000 | $95.50 |
| EA | 25 | $8.44000 | $211.00 |
| EA | 50 | $8.18000 | $409.00 |
| EA | 100 | $7.68000 | $768.00 |
| EA | 125 | $7.52000 | $940.00 |
| EA | 250 | $7.10000 | $1775.00 |
Click image to enlarge

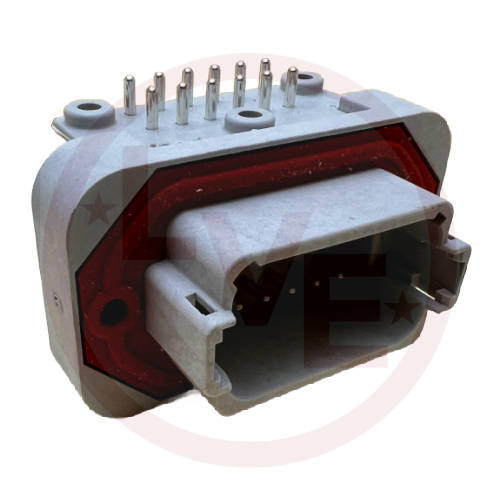

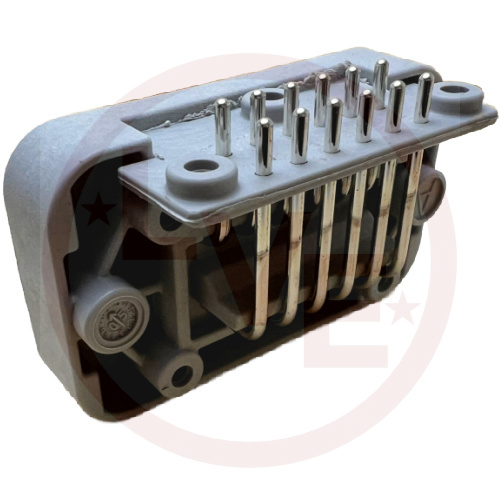

DEUTSCH DT13-12PA
CONNECTOR HEADER 12 POS R/A RECEPTACLE
- UM: EA
- Weight: 0.09 LBS
- Brand: TE CONNECTIVITY
Specifications
| Manufacturer | TE Connectivity Deutsch |
| Connector Type | Header |
| Number of Positions | 12 |
| Number of Rows | 2 |
| Contact Type | Male Pin |
| Pitch | .175" (4.44mm) |
| Row Spacing | .250" (6.35mm) |
| Contact Termination | Solder |
| Mounting Type | Panel Mount, Through Hole, Right Angle |
| Fastening Type | Latch Holder |
| Color | Gray |
| Part Status | Active |
