Item # KINGBRIGHT DA56-11GWA
LED DISPLAY GREEN 2 DIGIT .56"
Unit Price: $2.10000 / EA
- Minimum Order Quantity: 1
- Package Quantity: 20
- Case Quantity: 100
- Log in to see if custom discounts apply
Quantity Price Break
| UM | Qty | Price | Ext. Price |
|---|---|---|---|
| EA | 1 | $2.10000 | $2.10 |
| EA | 20 | $1.47000 | $29.40 |
| EA | 40 | $1.39000 | $55.60 |
| EA | 80 | $1.32000 | $105.60 |
| EA | 100 | $1.25000 | $125.00 |

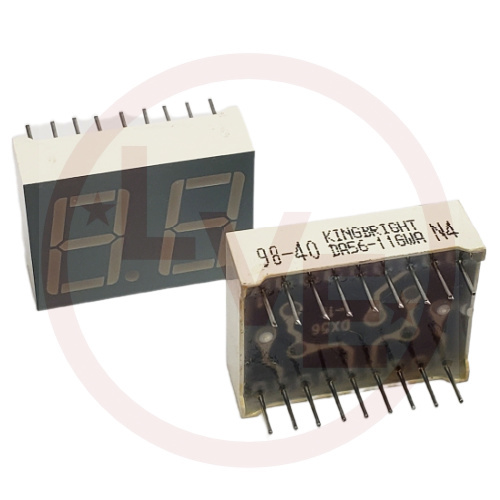

Click image to enlarge
KINGBRIGHT DA56-11GWA
LED DISPLAY GREEN 2 DIGIT .56"
- UM: EA
- Weight: 0.01 LBS
- Brand: KINGBRIGHT
COMMON ANODE
Specifications
| Manufacturer | Kingbright |
| Color | Green |
| Voltage Rating | 2.2V |
| Current | 20mA |
| Milicandela Rating | 11mcd |
| Number of Characters | 2 |
| Digit/Alpha Size | .56" (14.22mm) |
| Wavelength Peak | 565nm |
| Display Type | 7 Segment |
| Lens Type | Gray Face, White Segment |
| Mounting Type | Through Hole |
| Part Status | Active |
