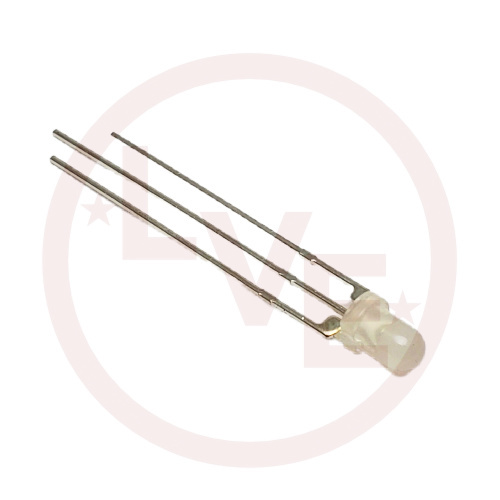

Item # KINGBRIGHT WP3VGYW
LED 3MM GREEN 565NM/YELLOW 590NM DIFFUSED W/WHITE LENS
Unit Price: $0.23000 / EA
- Minimum Order Qty: 1
- Pkg Qty: 500
- Case Qty: 2,500
- Log in to see if custom discounts apply
Quantity Price Break
| UM | Qty | Price | Ext. Price |
|---|---|---|---|
| EA | 1 | $0.23000 | $0.23 |
Click image to enlarge
KINGBRIGHT WP3VGYW
LED 3MM GREEN 565NM/YELLOW 590NM DIFFUSED W/WHITE LENS
- UM: EA
- Brand: KINGBRIGHT
BI-COLOR
Specifications
| Manufacturer | Kingbright |
| Color | Green, Yellow |
| Voltage Rating | 2.2V Green, 2.1V Yellow |
| Current | 20mA |
| Lens Color | White Diffused |
| Lens Transparency | Diffused |
| Lens Style | Round |
| Lens Size | 3mm |
| Height | 6.93mm |
| Millicandela Rating | 40mcd Green, 15mcd Yellow |
| Viewing Angle | 60 DEG |
| Wavelength Peak | 565nm Green, 590nm Yellow |
| Mounting Type | Through Hole |
| Part Status | Active |
Documents
×
