Item # KINGBRIGHT WP7104HD
LED 3MM RED DIFFUSED 700NM 25MA 2.25V
Unit Price: $0.12000 / EA
- Minimum Order Qty: 1
- Pkg Qty: 500
- Case Qty: 2,500
- Log in to see if custom discounts apply
Quantity Price Break
| UM | Qty | Price | Ext. Price |
|---|---|---|---|
| EA | 1 | $0.12000 | $0.12 |
| EA | 25 | $0.09000 | $2.25 |
| EA | 50 | $0.07500 | $3.75 |
| EA | 100 | $0.06600 | $6.60 |
| EA | 250 | $0.05900 | $14.75 |

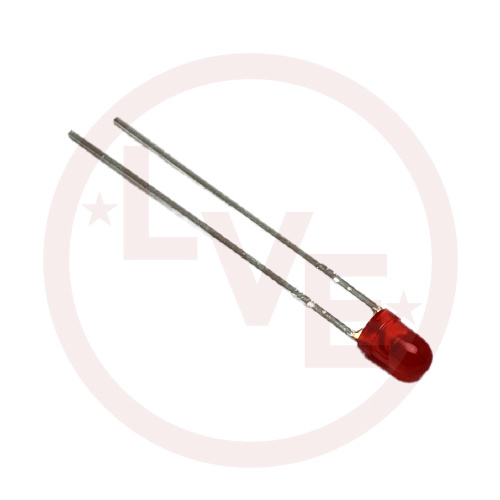

Click image to enlarge
KINGBRIGHT WP7104HD
LED 3MM RED DIFFUSED 700NM 25MA 2.25V
- UM: EA
- Brand: KINGBRIGHT
Specifications
| Manufacturer | Kingbright |
| Color | Red |
| Voltage Rating | 2.25V |
| Current | 25mA |
| Lens Color | Red Diffused |
| Lens Transparency | Diffused |
| Lens Style | Round |
| Lens Size | 3mm |
| Height | 4.6mm |
| Millicandela Rating | 3mcd |
| Viewing Angle | 60 DEG |
| Wavelength Peak | 700nm |
| Mounting Type | Through Hole |
| Part Status | Discontinued |
