Item # MOLEX 09-52-3063
CONNECTOR RECEPTACLE 6 POS FEMALE KK 156 PCB ASSY .156P
Unit Price: $0.47900 / EA
- Minimum Order Qty: 1
- Pkg Qty: 500
- Case Qty: 4,000
- Log in to see if custom discounts apply
Quantity Price Break
| UM | Qty | Price | Ext. Price |
|---|---|---|---|
| EA | 1 | $0.47900 | $0.48 |
| EA | 25 | $0.45500 | $11.38 |
| EA | 50 | $0.43200 | $21.60 |
| EA | 100 | $0.41000 | $41.00 |
| EA | 250 | $0.38900 | $97.25 |
| EA | 500 | $0.37000 | $185.00 |

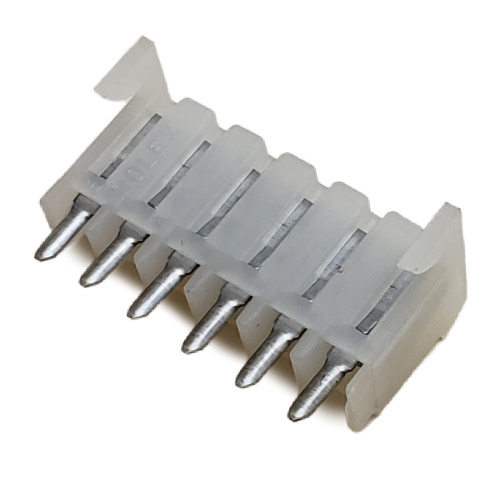

Click image to enlarge
MOLEX 09-52-3063
CONNECTOR RECEPTACLE 6 POS FEMALE KK 156 PCB ASSY .156P
- UM: EA
- Weight: 0.01 LBS
- Brand: MOLEX
W/FRICTION RAMP
Specifications
| Manufacturer | Molex |
| Connector Type | Receptacle |
| Number of Positions | 6 |
| Number of Rows | 1 |
| Contact Type | Female Socket |
| Pitch | .156" (3.96mm) |
| Row Spacing | - |
| Contact Termination | Solder |
| Mounting Type | Through Hole |
| Fastening Type | Locking Ramp |
| Color | Natural |
| Part Status | Obsolete |
Documents
×
