Item # MOLEX 120071-0038
CONNECTOR 4 POS MICRO-CHANGE (M12) SINGLE KEYWAY WITH PG7 CABLE FITTING, STRAIGHT MALE
Unit Price: $27.24000 / EA
- Minimum Order Qty: 1
- Pkg Qty: 1
- Case Qty: 1
- Log in to see if custom discounts apply
Quantity Price Break
| UM | Qty | Price | Ext. Price |
|---|---|---|---|
| EA | 1 | $27.24000 | $27.24 |
| EA | 5 | $25.10000 | $125.50 |

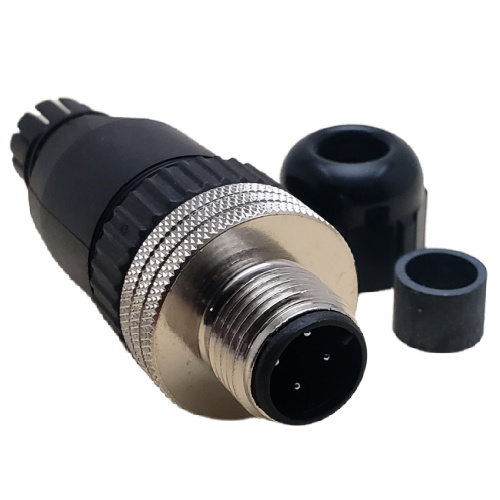

Click image to enlarge
MOLEX 120071-0038
CONNECTOR 4 POS MICRO-CHANGE (M12) SINGLE KEYWAY WITH PG7 CABLE FITTING, STRAIGHT MALE
- UM: EA
- Weight: 0.01 LBS
- Brand: MOLEX
CABLE DIAMETER 3.30-6.60MM
Specifications
| Manufacturer | Molex |
| Connector Type | Receptacle, Male Pins |
| Number of Positions | 4 |
| Current Rating (Amps) | 4A |
| Voltage Rating | 250VAC,300VDC |
| Cable Opening | .130"-.260" (3.30mm-6.60mm) |
| Shell Size/Insert | M12-4 |
| Mounting Type | Free Hanging (In-Line) |
| Termination | Screw |
| Fastening Type | Threaded |
| Shell Material | Brass |
| Shell Finish | Nickel |
| Contact Finish-Mating | Silver |
| Ingress Protection | IP67-Dust Tight, Waterproof |
| Color | Black/Silver |
| Part Status | Active |
Documents
×
