Item # MOLEX 39-01-2025
CONNECTOR HEADER 2 POS RECEPTACLE HSG MINI-FIT JR. DUAL ROW .165P
Unit Price: $0.15200 / EA
- Minimum Order Qty: 1
- Pkg Qty: 1
- Case Qty: 1
- Log in to see if custom discounts apply
Quantity Price Break
| UM | Qty | Price | Ext. Price |
|---|---|---|---|
| EA | 1 | $0.15200 | $0.15 |
| EA | 25 | $0.14400 | $3.60 |
| EA | 50 | $0.13700 | $6.85 |
| EA | 100 | $0.13000 | $13.00 |
| EA | 250 | $0.12400 | $31.00 |
| EA | 500 | $0.11700 | $58.50 |
| EA | 1,000 | $0.11200 | $112.00 |
| EA | 2,500 | $0.10600 | $265.00 |

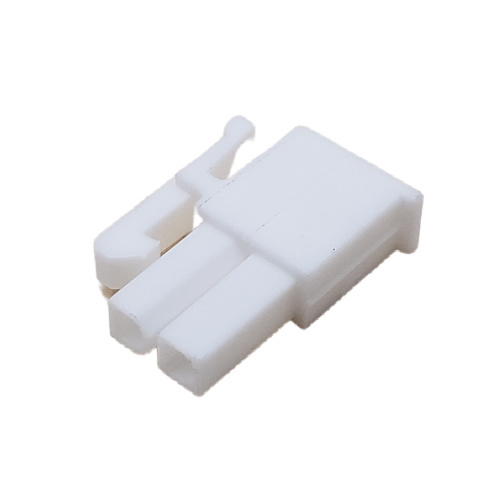

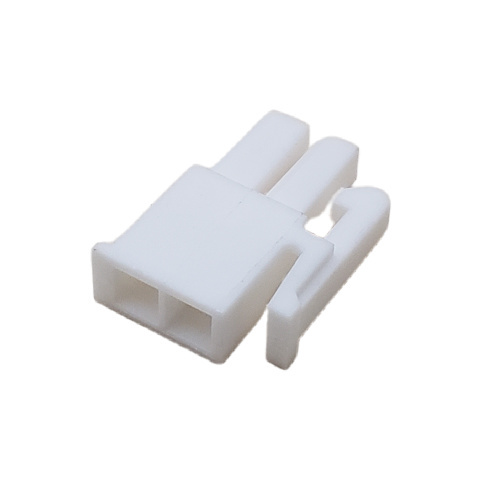

Click image to enlarge
MOLEX 39-01-2025
CONNECTOR HEADER 2 POS RECEPTACLE HSG MINI-FIT JR. DUAL ROW .165P
- UM: EA
- Brand: MOLEX
Specifications
| Manufacturer | Molex |
| Connector Type | Receptacle |
| Number of Positions | 2 |
| Number of Rows | 2 |
| Contact Type | Female Socket |
| Pitch | .165" (4.20mm) |
| Row Spacing | .165" (4.20mm) |
| Contact Termination | Crimp |
| Mounting Type | Free Hanging (In-Line) |
| Fastening Type | Latch Lock |
| Color | Natural |
| Part Status | Active |
