Item # MOLEX 39-01-2046
CONNECTOR HEADER 4 POS PLUG HSG MINI-FIT JR. DUAL ROW .165P
Unit Price: $0.31900 / EA
- Quantity Available: 800
- Minimum Order Qty: 1
- Pkg Qty: 1
- Case Qty: 1,000
- Log in to see if custom discounts apply
Quantity Price Break
| UM | Qty | Price | Ext. Price |
|---|---|---|---|
| EA | 1 | $0.31900 | $0.32 |
| EA | 25 | $0.30200 | $7.55 |
| EA | 50 | $0.28800 | $14.40 |
| EA | 100 | $0.27300 | $27.30 |
| EA | 250 | $0.26000 | $65.00 |
| EA | 500 | $0.24700 | $123.50 |

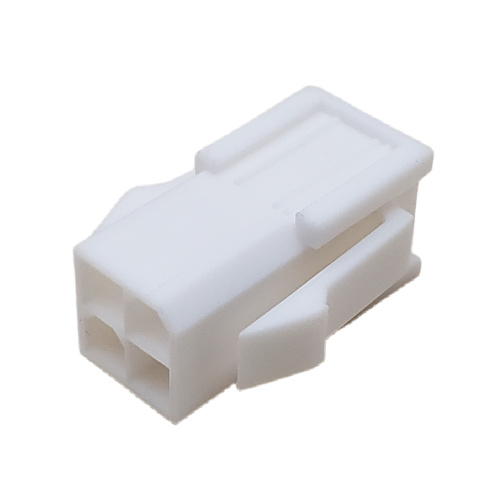

Click image to enlarge
MOLEX 39-01-2046
CONNECTOR HEADER 4 POS PLUG HSG MINI-FIT JR. DUAL ROW .165P
- UM: EA
- Weight: 0.01 LBS
- Brand: MOLEX
W/PANEL MOUNTING EARS
Specifications
| Manufacturer | Molex |
| Connector Type | Plug Housing |
| Number of Positions | 4 |
| Number of Rows | 2 |
| Contact Type | Male Pin |
| Pitch | .165" (4.20mm) |
| Row Spacing | .165" (4.20mm) |
| Contact Termination | Crimp |
| Mounting Type | Panel Mount, Snap-In |
| Fastening Type | Locking Ramp |
| Color | White |
| Part Status | Active |
Documents
×
