Item # MOLEX 39-30-1160
CONNECTOR HEADER 16 POS MINI-FIT JR. RIGHT ANGLE DUAL ROW .165P
Unit Price: $1.50000 / EA
- Quantity Available: 76
- Minimum Order Qty: 1
- Pkg Qty: 1
- Case Qty: 1,000
- Log in to see if custom discounts apply
Quantity Price Break
| UM | Qty | Price | Ext. Price |
|---|---|---|---|
| EA | 1 | $1.50000 | $1.50 |
| EA | 25 | $1.43000 | $35.75 |
| EA | 50 | $1.35000 | $67.50 |

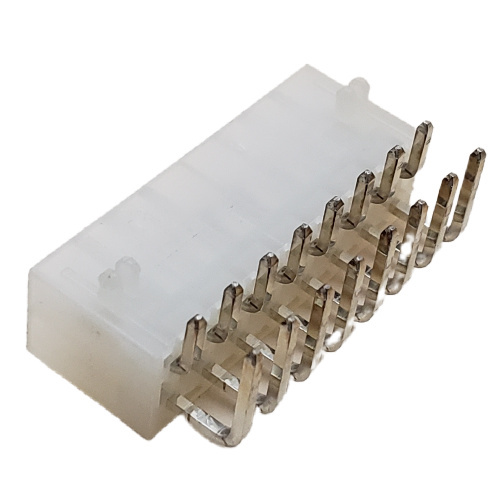

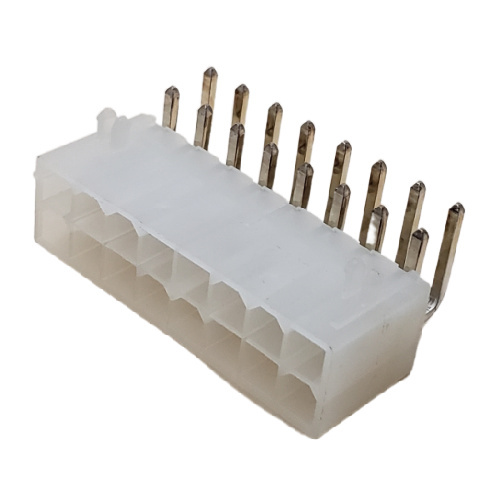

Click image to enlarge
MOLEX 39-30-1160
CONNECTOR HEADER 16 POS MINI-FIT JR. RIGHT ANGLE DUAL ROW .165P
- UM: EA
- Weight: 0.02 LBS
- Brand: MOLEX
W/SNAP-IN PLASTIC PEG PCB LOCK
Specifications
| Manufacturer | Molex |
| Connector Type | Header |
| Number of Positions | 16 |
| Number of Rows | 2 |
| Contact Type | Male Pin |
| Pitch | .165" (4.20mm) |
| Row Spacing | .165" (4.20mm) |
| Contact Termination | Solder |
| Mounting Type | Through Hole, Right Angle |
| Fastening Type | Locking Ramp |
| Color | Natural |
| Part Status | Active |
