Item # PANDUIT P10-56R-L
TERMINAL RING 12-10 AWG 5/16" STUD NON-INSULATED
Unit Price: $0.58000 / EA
- Minimum Order Quantity: 1
- Package Quantity: 50
- Case Quantity: 500
- Log in to see if custom discounts apply
Quantity Price Break
| UM | Qty | Price | Ext. Price |
|---|---|---|---|
| EA | 1 | $0.58000 | $0.58 |
| EA | 100 | $0.56000 | $56.00 |
| EA | 200 | $0.52000 | $104.00 |
| EA | 500 | $0.48000 | $240.00 |
Click image to enlarge

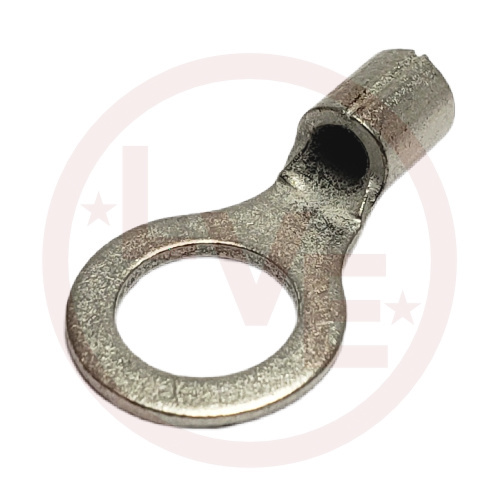

PANDUIT P10-56R-L
TERMINAL RING 12-10 AWG 5/16" STUD NON-INSULATED
- UM: EA
- Weight: 0.01 LBS
- Brand: PANDUIT
Specifications
| Manufacturer | Panduit |
| Wire Gauge | 12-10 AWG |
| Terminal Type | Pan-Term |
| Stud Size | 5/16 (8) |
| Features | Brazed Seam, Serrated Termination |
| Length-Overall | .950" (24.13mm) |
| Width | .520" (13.21mm) |
| Insulation | Non-Insulated |
| Color | - |
| Packaging | Bulk |
| Part Status | Active |
