Item # T&B 54138
TERMINAL LUG #4 AWG #10 STUD TIN PLATED MAX 35kV
Unit Price: $4.58000 / EA
- Minimum Order Quantity: 1
- Package Quantity: 50
- Case Quantity: 250
- Log in to see if custom discounts apply
Quantity Price Break
| UM | Qty | Price | Ext. Price |
|---|---|---|---|
| EA | 1 | $4.58000 | $4.58 |
| EA | 50 | $4.12000 | $206.00 |
| EA | 100 | $3.92000 | $392.00 |
| EA | 500 | $3.72000 | $1860.00 |

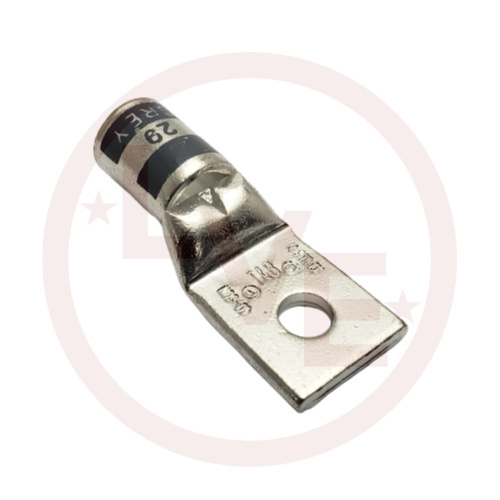

Click image to enlarge
T&B 54138
TERMINAL LUG #4 AWG #10 STUD TIN PLATED MAX 35kV
- UM: EA
- Weight: 0.02 LBS
- Brand: ABB/THOMAS AND BETTS
DIE CODE 29/CODE GRAY
Specifications
| Manufacturer | Thomas & Betts |
| Stud Size | #10 |
| Wire Gauge | 4 AWG |
| Length Overall | 1.38"(35.05mm) |
| Thickness | .09"(2.29mm) |
| Width (Outer Edges) | .55"(13.97mm) |
| Insulation | Non-Insulated |
| Packaging | Bulk |
| Part Status | Active |
